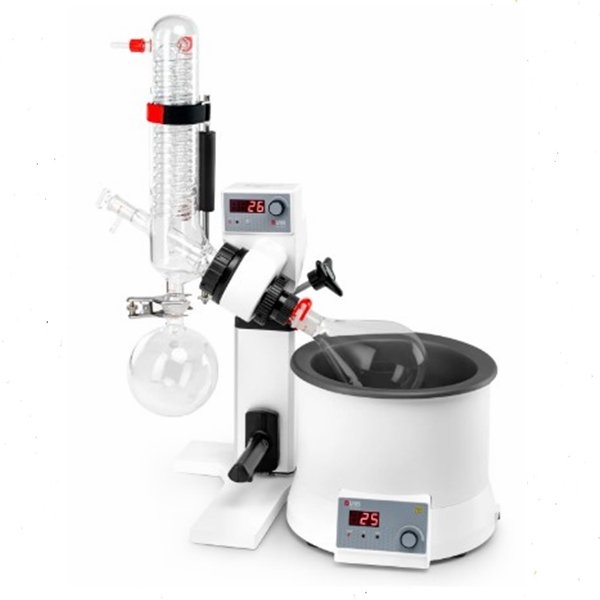

Rotary Evaporatopr RE100-S

Rotary Evaporatopr RE100-S

SKU N/A Categories , , ,

Type-ROTAREVAP

Bulk pricing on request
Please note: For an official quote with updated pricing and availability in PDF, please add your items and quantities to your quote and submit.
Add to quote

Description

Product CodeTypeCapacityTemp Range°CTemp Accuracy°CTime RangeDisplaySpeed RangeMotorProtection ClassMore
6030120211+
18202410		RE100-S 182024101000mlambient to 180±11-999sLED20-200rpmBrushless DC MotorIP20Rotary Evaporator with set of glassware vertical include 18202410 condenser (1200cm²,1000ml) and LED heating bath 18101888
6030120220+
18900476		RE100-S 189004761000mlambient to 180±11-999sLED20-200rpmBrushless DC MotorIP20Rotary Evaporator with set of glassware vertical include 18900476 condenser (1200cm²,1000ml) and LED heating bath 18101888
6030120211+
18900165		RE100-S 189001651000mlambient to 180±11-999sLED20-200rpmBrushless DC MotorIP20Rotary Evaporator with set of glassware vertical include 18900165 condenser (1700cm²,1000ml) and LED heating bath 18101888

Download Brochure

Additional information

Type

RE100-S 18202410, RE100-S 18900476, RE100-S 18900165

RE100-S

•   5L heating bath with a wide temperature range (room temp.to180 °C).
Independent temperature control makes it can be used separately. Water/oil heating mode can be changed just through a switch
•   Manual lift combined with auxiliary lift for precise positioning of the glassware
•  PID control ensures high temperature accuracy at ±1°C (water)
•   Overheating protection temperature at 220°C
•   Boil-dry protection, automatically power off if heating without water/oil in the heating bath
•   Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process
•  Condenser (cooling surface 1200/1700cm2 for selection), speeding up the flow rate of liquid with excellent cooling effect
•   Ejection mechanism ensures easy exchange of evaporating flask
•   Adjustable immersion angle
•  Double spring sealing ring which is made of PTFE provides an excellent sealing performance
•   Compatible with the entire range of RE100-Pro glassware
•  Optional glassware with explosion proof film available
•   High temperature warning when above 50°C
