Equipment and Instruments

Glass Refills for Dewar Flasks with Flange


Please note: For an official quote with updated pricing and availability in PDF, please add your items and quantities to your quote and submit.

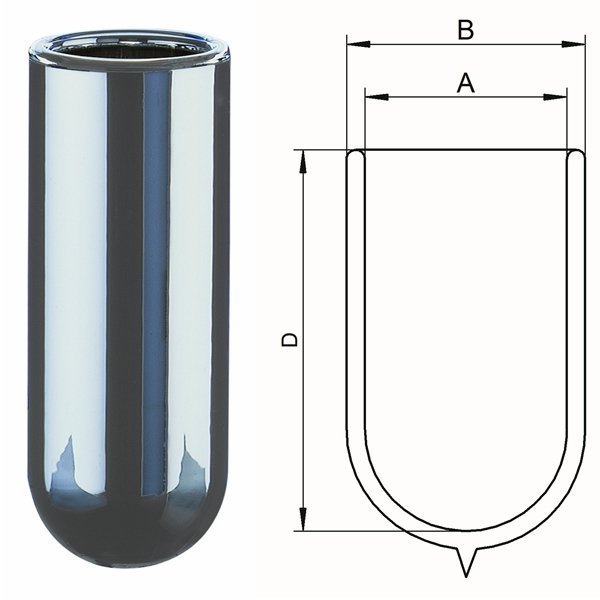

Product CodeTypeCapacity – mlA – ID – mmB – Top OD – mmD – Inner H – mm
INST-1111F 0 A2004056160
INST-1112F 1 A3004760180
INST-1113F 3 A5005770200
INST-1114F 6 A8006780230
INST-1115F 7 A12006780340
INST-1116F 9 A10007795225
INST-1117F 10 A15007795335
INST-1118F 12 A150090115235
INST-1119F 13 A200090115330
INST-11110F 15 A1500100120230
INST-11111F 16 A2000100120280
INST-11112F 18 A2500110130280
INST-11113F 19 A5000110130590
INST-11114F 21 A4000138160300
INST-11115F 22 A8000138160590

Additional information


F 0 A, F 1 A, F 3 A, F 6 A, F 7 A, F 9 A, F 10 A, F 12 A, F 13 A, F 15 A, F 16 A, F 18 A, F 19 A, F 21 A, F 22 A


Area of application -Laboratory technique
Medicinal technique
Storing and company internal short-distance transport
for liquid or solid medias and solid matters
Pressure-less space for coolants
NLK appliance
Description of complete flasks
Types and accessories:
C = blue-coated protective casing out of metal
Temperature ranges:
Glass refill from -200°C to +150°C
Pressure range::
pressure – less
Features of performance
Reliably and economically
Dewar flasks according to DIN 12492
Glass material according to ISO 3585
Nominal capacity from 200ml to 8 litres
Protective casing out of blue-coated metal Type "C"
